flink cdc同步数据

工作原理

Flink CDC 是 Apache Flink 的一组源连接器，使用变更数据捕获 (CDC) 从 MySQL、PostgreSQL 等不同数据库中直接读取全量数据和增量变更数据。Flink CDC Connectors 集成了 Debezium 作为捕获数据变化的引擎。所以它可以充分利用Debezium的能力。

实践

前提环境

1.mysql已经开启binlog

2.创建同步账号

CREATE USER flinkcdc IDENTIFIED BY '123456';

GRANT SHOW DATABASES,RELOAD,LOCK TABLES,SELECT, REPLICATION SLAVE, REPLICATION CLIENT ON *.* TO 'flinkcdc'@'%';

FLUSH PRIVILEGES;

依赖

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <flink.version>1.12.0</flink.version>
        <java.version>1.8</java.version>
        <scala.binary.version>2.12</scala.binary.version>
        <maven.compiler.source>${java.version}</maven.compiler.source>
        <maven.compiler.target>${java.version}</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-java</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-streaming-java_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-clients_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.49</version>
        </dependency>

        <dependency>
            <groupId>com.ververica</groupId>
            <artifactId>flink-connector-mysql-cdc</artifactId>
            <version>2.0.2</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.75</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-planner-blink_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-jdbc_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-common</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-api-java-bridge_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-api-java</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-planner-blink_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
            <type>test-jar</type>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.16.22</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-elasticsearch7_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>1.7.25</version>
        </dependency>

        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-simple</artifactId>
            <version>1.7.25</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-rabbitmq_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-redis_2.10</artifactId>
            <version>1.1.5</version>
        </dependency>

        <dependency>
            <groupId>redis.clients</groupId>
            <artifactId>jedis</artifactId>
            <version>3.3.0</version>
        </dependency>

    </dependencies>

示例代码

import com.ververica.cdc.connectors.mysql.table.StartupOptions;
import com.ververica.cdc.debezium.StringDebeziumDeserializationSchema;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.source.SourceFunction;
import com.ververica.cdc.connectors.mysql.MySqlSource;


public class MySqlSourceExample {

    public static void main(String[] args) throws Exception {

        SourceFunction<String> sourceFunction = MySqlSource.<String>builder()
                .hostname("mysqldb.service.com")
                .port(3306)
                .databaseList("gordon_db")
                .tableList("gordon_db.dw_area_base")
                .username("root")
                .password("db123456")
                .deserializer(new StringDebeziumDeserializationSchema())
                // 启动参数 提供了如下几个静态方法
                //StartupOptions.initial() 第一次启动的时候，会把历史数据读过来（全量）做快照，后续读取binlog加载新的数据，如果不做 checkpoint 会存在重启又全量一遍。
                // StartupOptions.earliest() 只从binlog开始的位置读（源头），这里注意，如果binlog开启的时间比你建库时间晚，可能会读不到建库语句会报错，earliest要求能读到建表语句
                // StartupOptions.latest() 只从binlog最新的位置开始读
                // StartupOptions.specificOffset() 自指定从binlog的什么位置开始读
                // StartupOptions.timestamp() 自指定binlog的开始时间戳
                .startupOptions(StartupOptions.initial())
                .build();

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        env.addSource(sourceFunction)
                .print()
                .setParallelism(1);

        env.execute();
    }
}

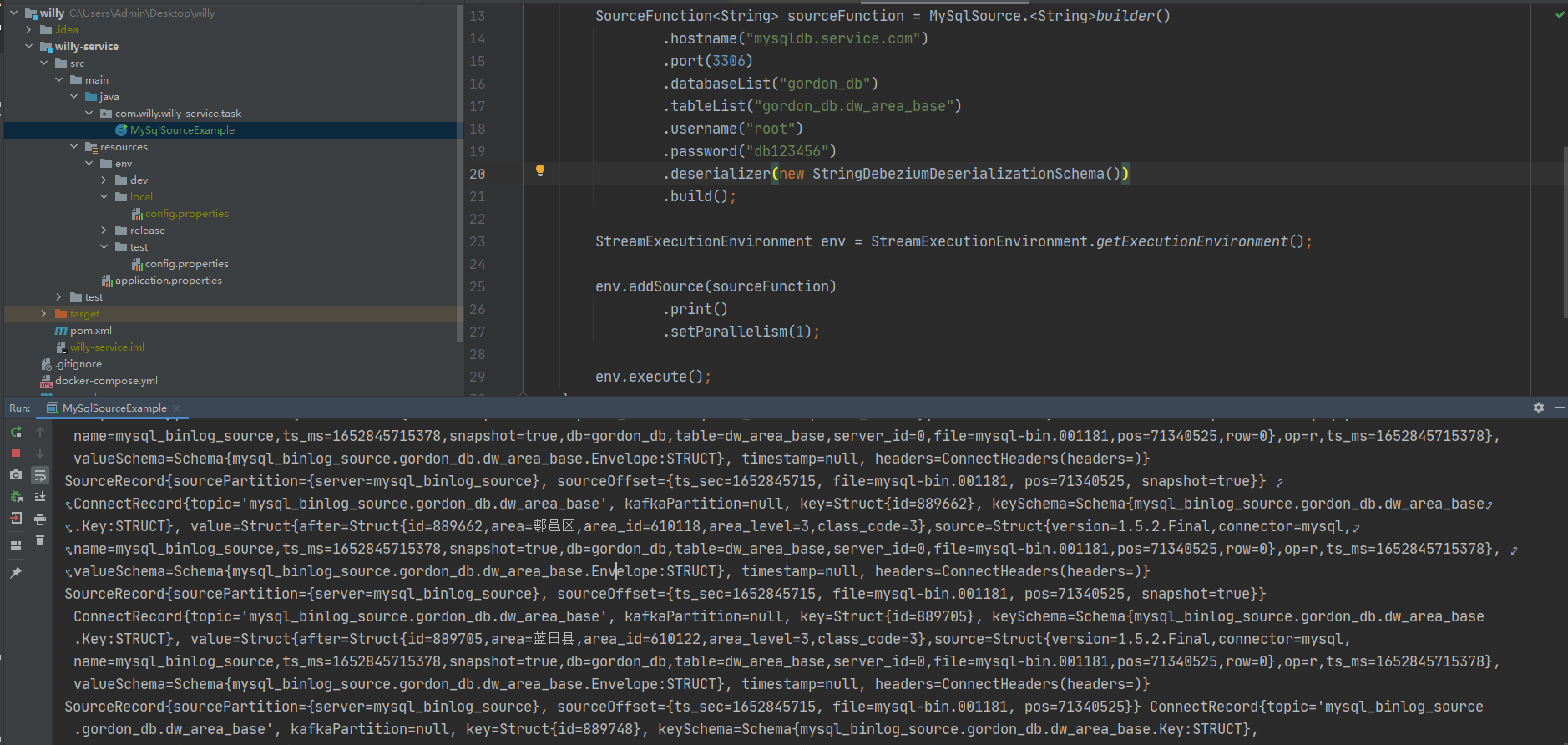

第一次会将数据全量同步，接着执行增量同步
